Overview

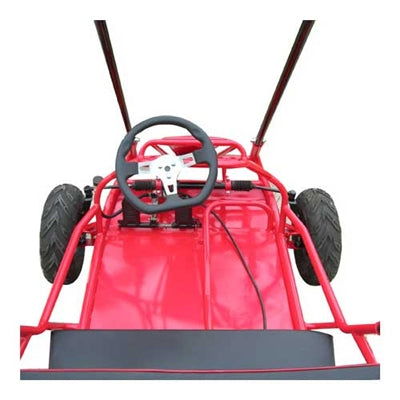

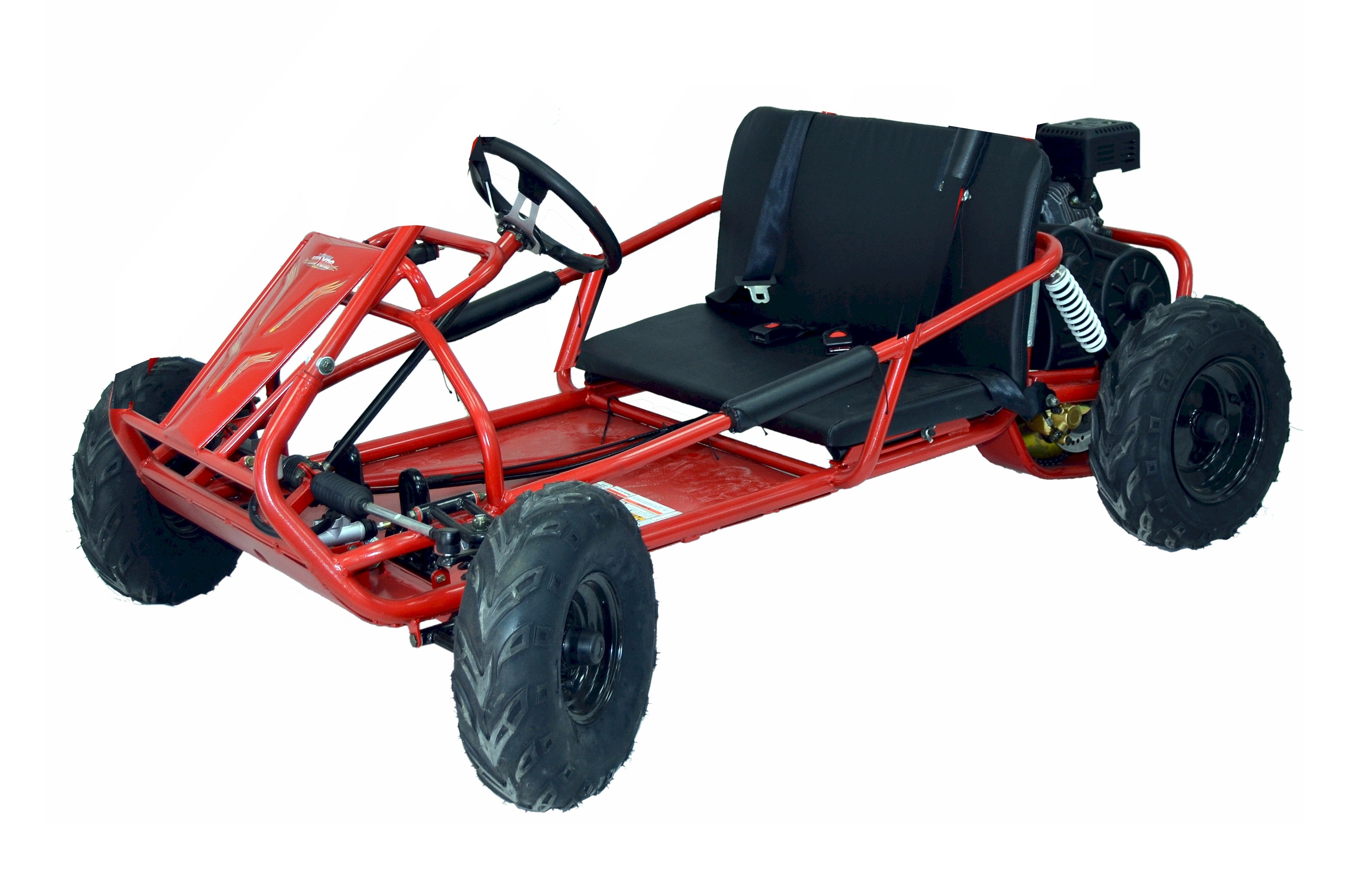

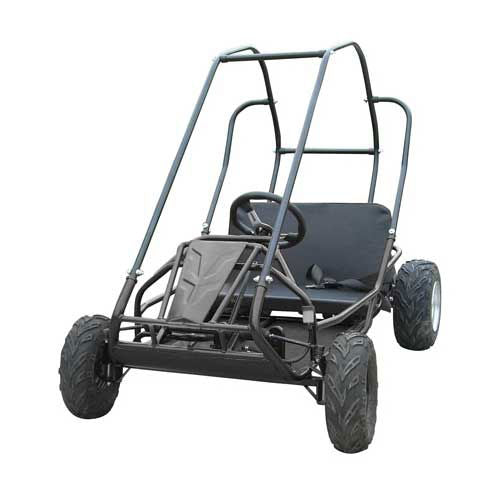

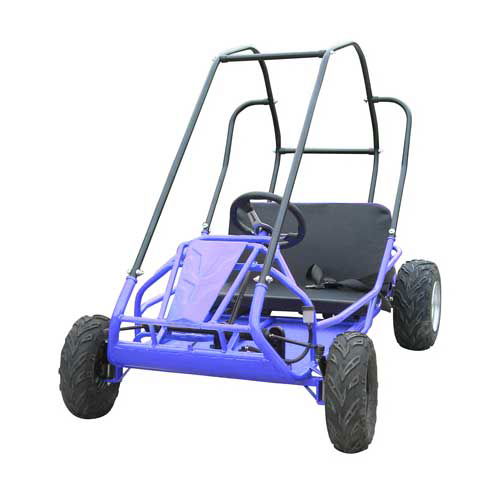

• The TrailMaster MID XRS Go Kart is designed for beginners, offering low maintenance, reliable performance and enjoyable riding. Featuring a strong frame, double oil damped shocks, hydraulic brakes, two-wheel drive and a 7.5hp engine, it reaches speeds of up to 35 MPH and a 12-degree climb range for navigating most trails. A simple design and improved turning radius provide added flexibility and protection from overhead brush. Key Features 4-stroke 7.5HP OHV engine Rack and pinion steering Two-wheel drive, live axle Full suspension front and rear Safety belts Adjustable pedals Speed governor Specifications Engine Information Engine type: 4-stroke, single cylinder, air cooled Displacement: 200cc Max HP: 7.5hp/3600rpm Max torque: 9.6 lb ft/2500rpm Bore x stroke: 2.6 x 2.1 inches Max speed: 35mph Climbing ability: 12 degrees Ignition: C.D.I Starting system: Manual Pull Start Carburetor brand: JF (RX) Engine oil: SAE 10W-40 General Information Clutch: Automatic CVT Driveline / Driving wheel: Chain /Dual wheel drive Suspension, F / R: Double Oil Damped Shock Brakes, Rear Hydraulic brake, Disc Tires, F / R: 145/70-6 / 16x6-8 Fuel capacity: 1 gal Weight, G.W. / N.W.: 386 / 330 lbs. Max load: 400 lbs. Dimension Information Wheelbase: 48.4 inches OA L x W x H: 67x43.3x51.2 inches Height to seat: 10.2 inches Min ground clearance: 2.8 inches Pedal to seat back distance: 31.5 to34 Download Product Brochure Assembly Guide Parts Manual
