Overview

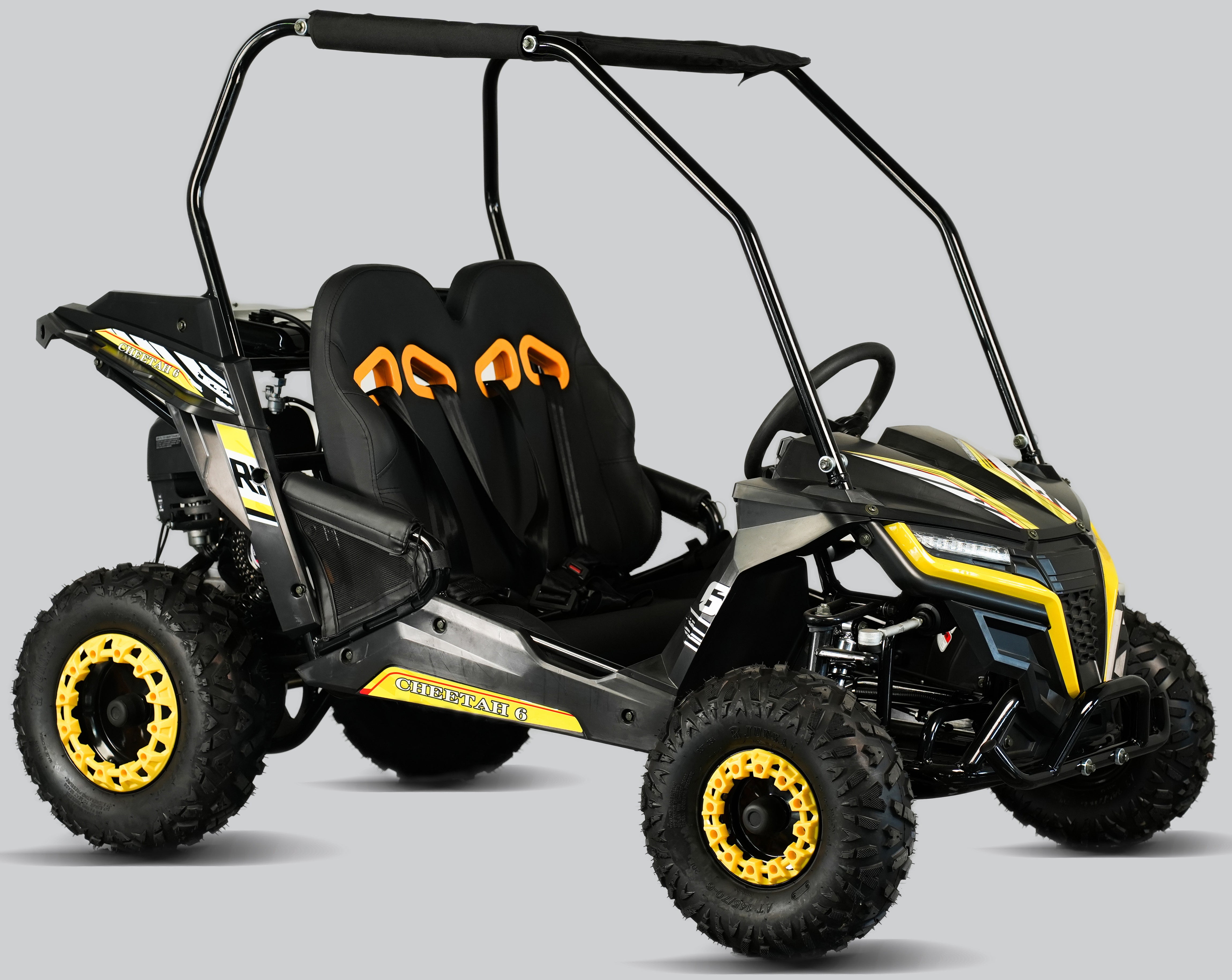

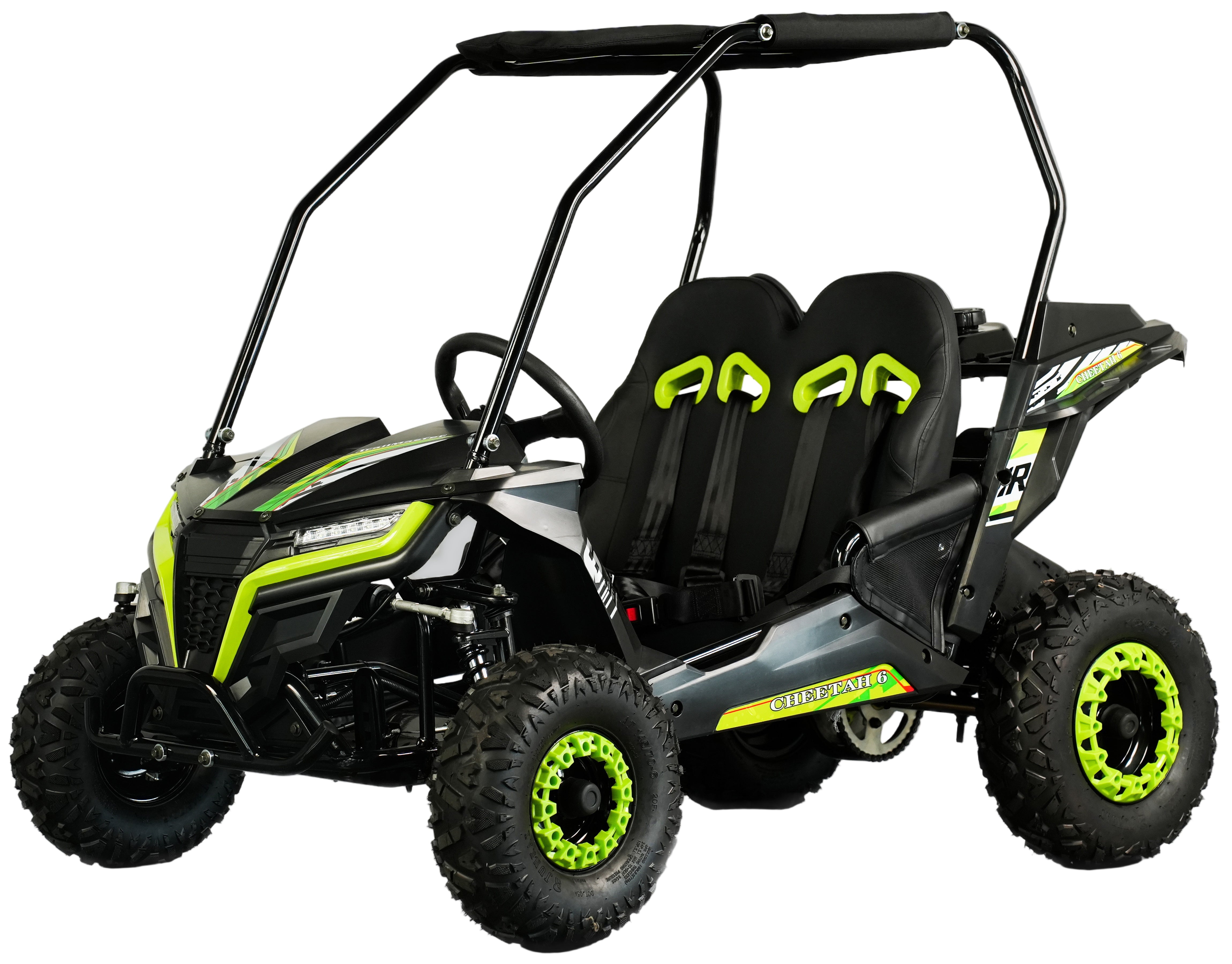

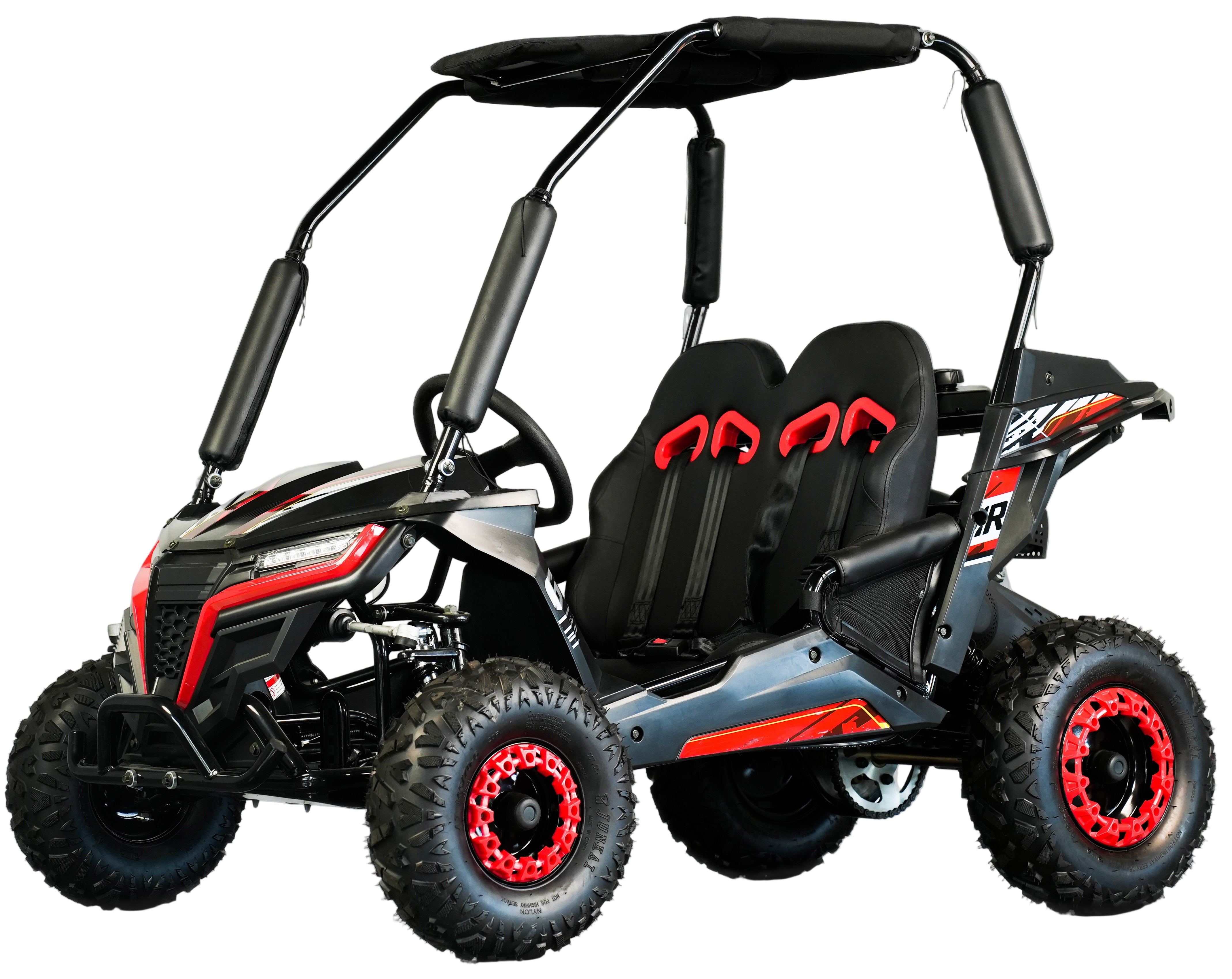

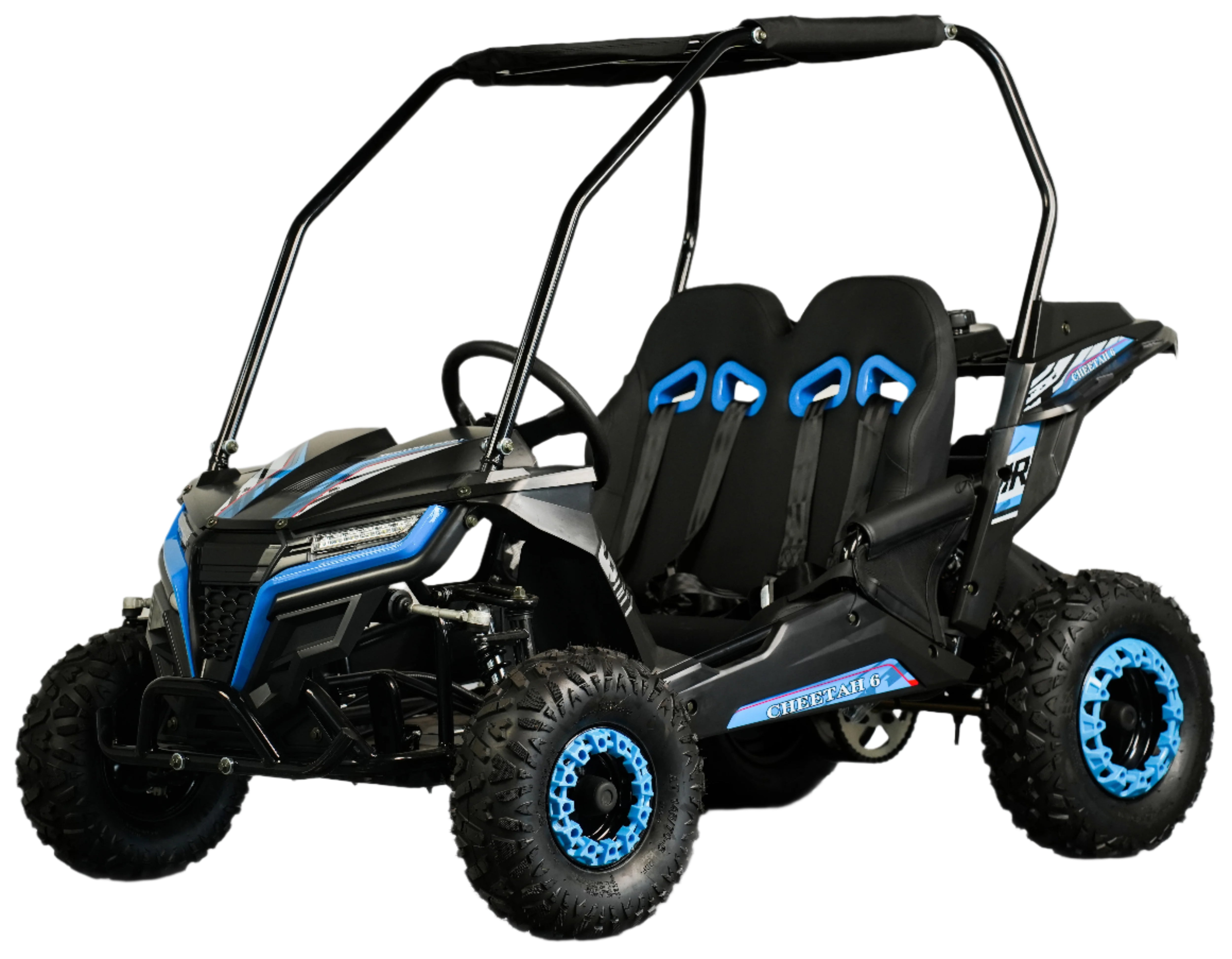

• The TrailMaster Cheetah 6 is slightly smaller than the Cheetah 8, catering to youths aged 4 to 9 years old and up to 5'4" tall. The Cheetah 6 boasts a 163cc, 5.5 HP horizontal OHV Engine and a torque converter CVT transmission, enabling a smooth takeoff. It can achieve a top speed of up to 24 MPH. The seat is adjustable, with a pedal-to-seat back range of 28” to 32”. For ease of starting in cold temperatures, it features a manual choke. Safety is enhanced with a pull cord kill switch. It also comes with an automatic CVT with reverse, hydraulic disc brake, 4-point safety seat belts, parking brake, fenders, a canopy top, and a cargo rack. The striking body panels and LED headlight package make the Cheetah 6 an impressive vehicle. Features: This new kid’s size UTV/Go kart includes the following main features: Automatic torque converter CVT with reverse, 5.5 HP horizontal OHV engine Adjustable seat: pedal to seat back adjustable from 28” to 32”, Age Group: 4-9 yrs, fits person up to 5’4” 4-point safety seat belt Remote Start/Kill Speed Governor Electric start with pull start backup Max speed 24 mph Specifications: Engine Information EPA certificated Engine type: 4-stroke, single cylinder, air cooled, Horizontal OHV Engine Displacement: 163cc, 5.5HP Max HP: 3.2KW/3600RPM Max torque: 10.8NM/2800RPM Bore x stroke: 2.67x1.77inches Max speed: 24 mph Climbing ability: 12 degrees Starting system: Electric or Pull Battery: YTX12-BS,12V 10Ah Carburetor brand: P19 Engine oil: SAE 10W-40 General Information Clutch: Automatic torque converter CVT with reverse Driveline / Driving wheel: Chain / Dual wheel drive Suspension F / R: Double A-arm / swing-arm Brake: Rear disc Tires, F / R: 145/70-6 /16*6-8 Wheel: Steel Fuel capacity: 1 gal Weight, G.W. / N.W.: 308 / 264 lbs Max load: 200 lbs Dimension Information Wheelbase: 43.7 inches OA L x W x H: 63x36x50 inches Height to seat: 14.2 inches Min ground clearance: 3.6 inches Pedal to seat back distance: 28” to 32” Packing size: 60X32X21 i
