Overview

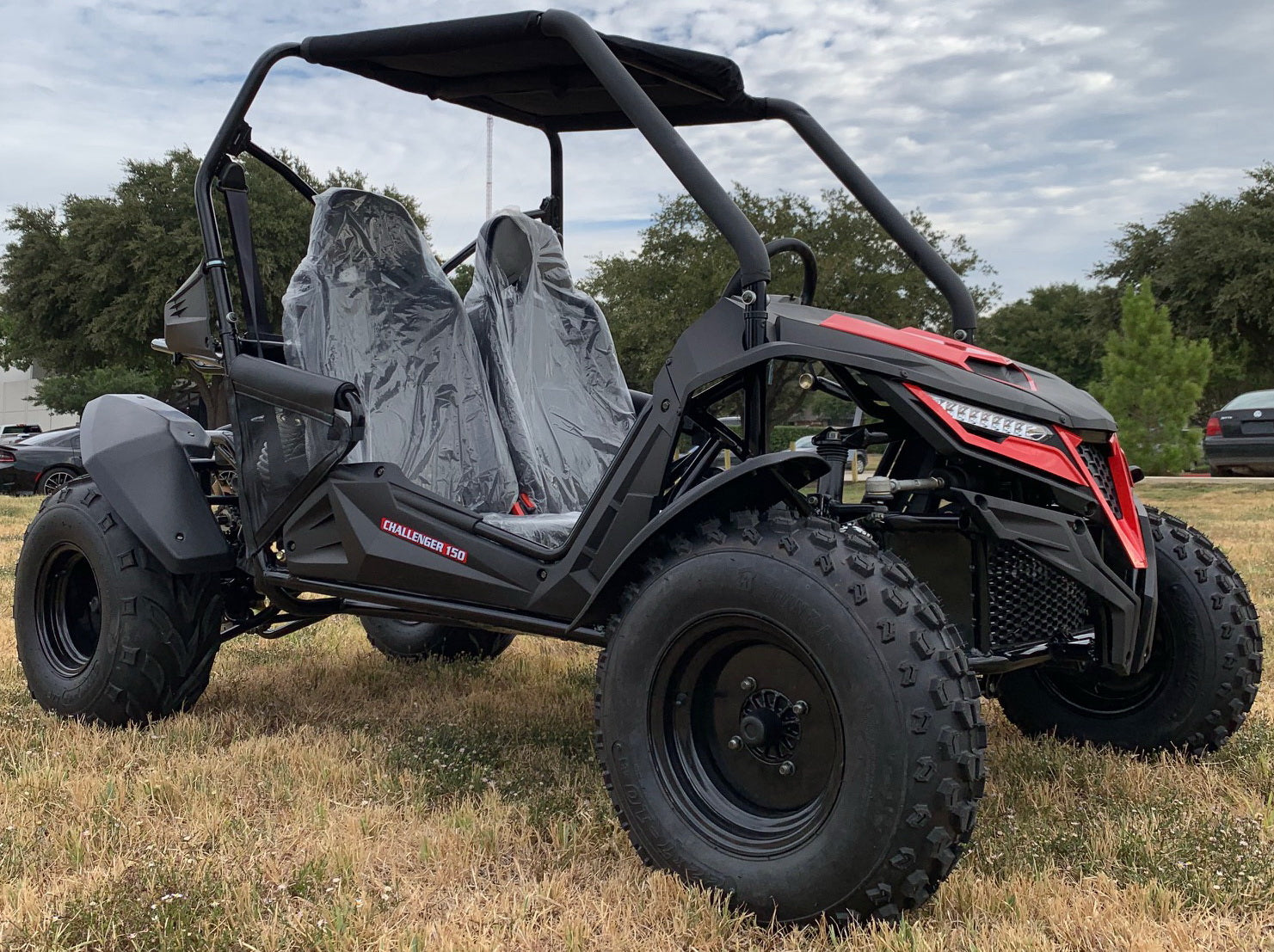

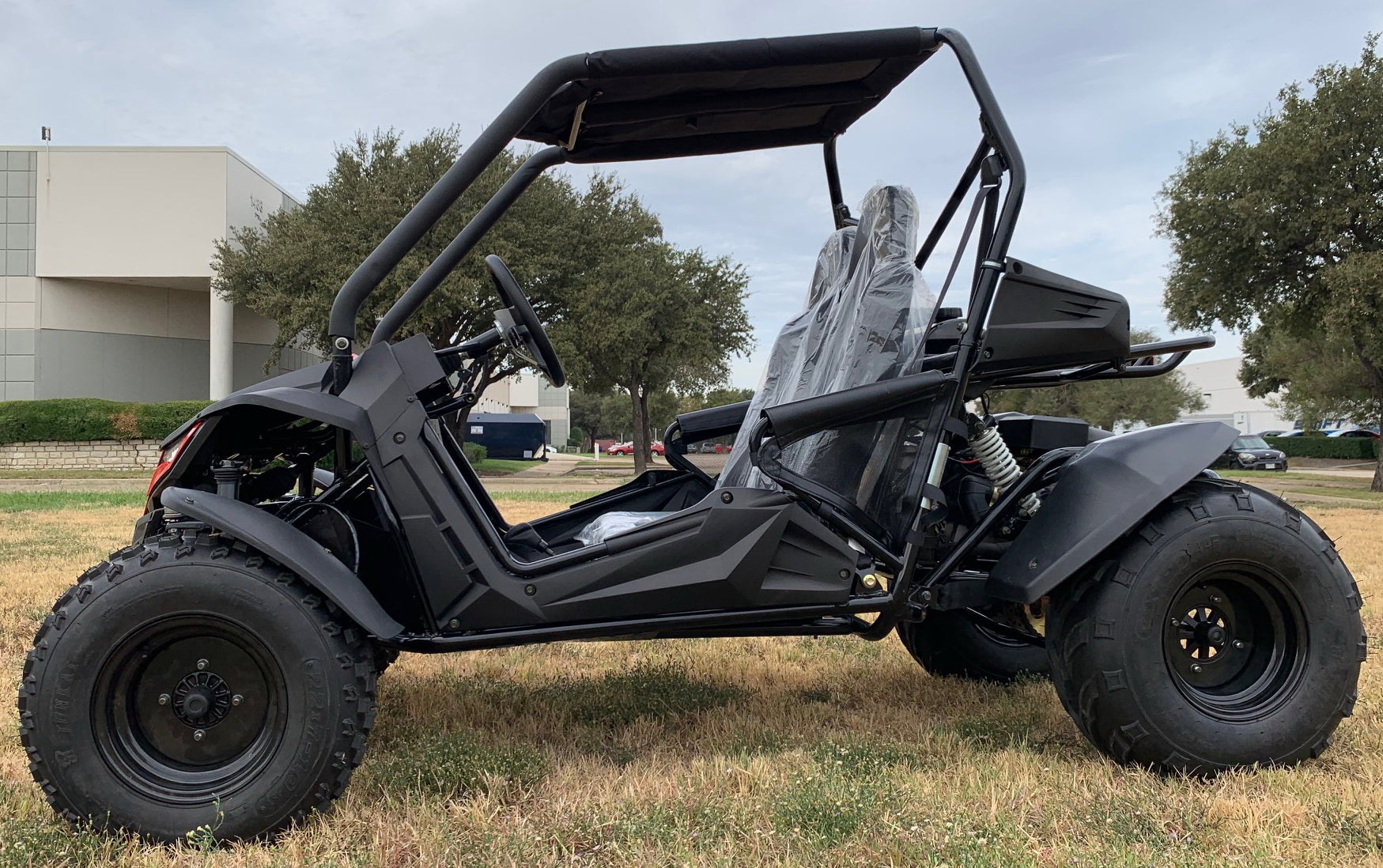

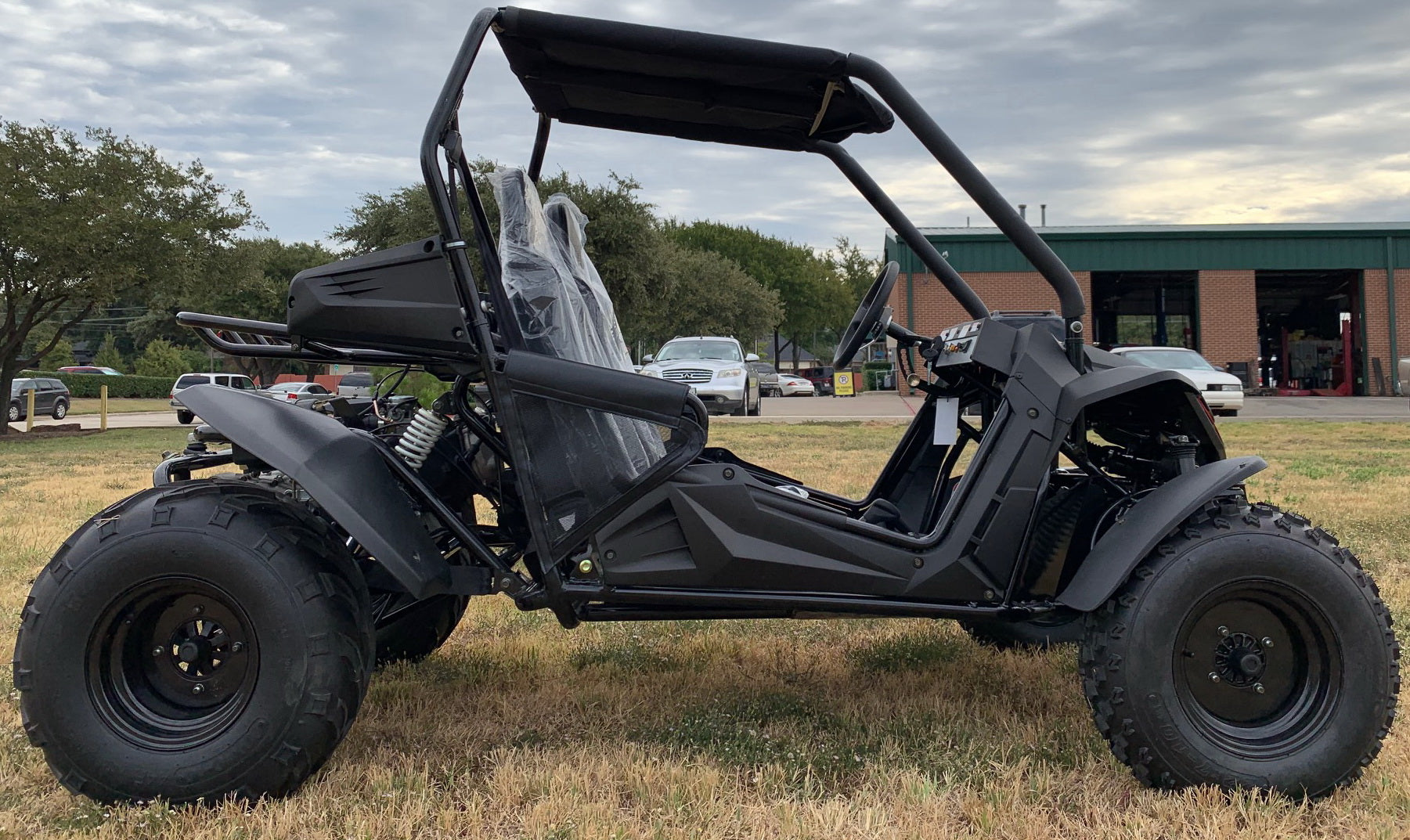

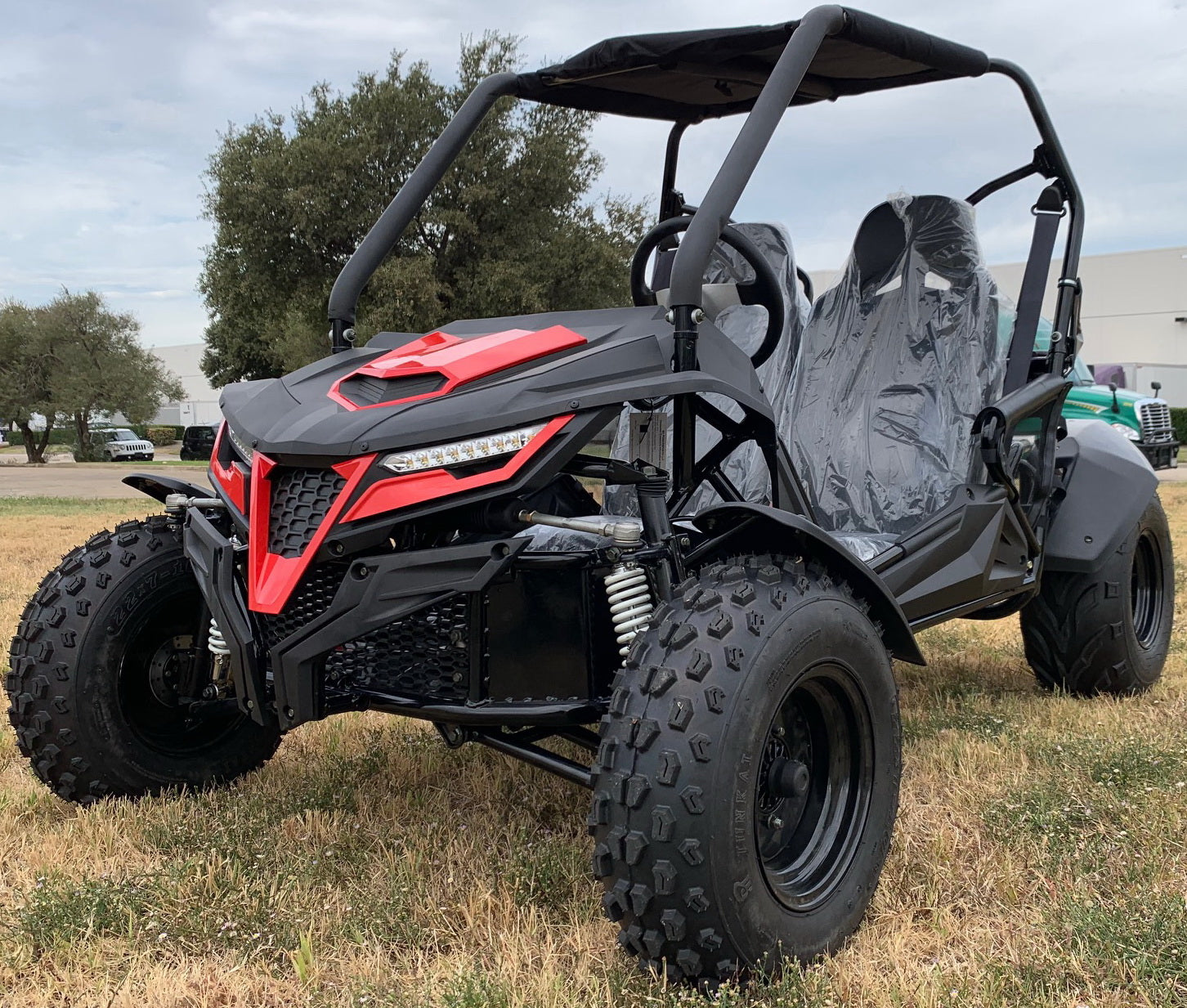

• DESCRIPTION DETAILS SUPPORT Adult Size, 200cc, Electric Start, Full Suspension, CVT Automatic with Reverse, Live Axle, Dual Wheel Drive, Dual Adjustable Seats, Disc Brakes, Fenders, Rack, Canopy Top, Lights, Tow Hitch. Add a Windshield and Top Lights. FEATURES : Reliable GY6 200 Engine Keyed Electric Start CVT Automatic Transmission with Reverse Hydraulic Disc Brakes Polished Stainless Steel Muffler Heavy Duty Full Suspension 5-Point Safety Harness 4-Wheel Fenders Adjustable Tilt Steering Wheel Canopy Sunshade Top Utility Rack Central Rear View Mirror Hi/Low Beam Headlights Tow Hitch SPECIFICATIONS: Engine type: 200cc, 4-stroke, single cylinder, air cooled Max HP: 10.8hp/7500rpm Max torque: 12 lb ft/6000rpm Bore x stroke: 2.26x2.28 inches Max speed: 43.5 mph Climbing ability: 12 degrees Ignition: C.D.I Starting system: Electric Battery: 12V 10Ah Carburetor brand: Deli (Vacuum film) Engine oil: SAE 10/15W-40 Clutch: Automatic CVT with reverse Driveline / Driving wheel: Chain / Dual wheel drive Suspension F / R: Double A-arm / swing-arm Brakes, F / R: Both hydraulic brakes, Disc Tires, F / R: 20x7-8 / 22x10-10 Fuel capacity: 2.25 gal Adjustable Driver Seat: Pedal to Seat Back adjusts from 38" to 43" Weight, G.W. / N.W.: 573 / 485 lbs Max load: 500 lbs Wheelbase: 59 inches OA L x W x H: 85x53.1x57.5 inches Height to seat: 13.8 inches Min ground clearance: 6.7 inches Support Help Center Owners Guides Parts Support
